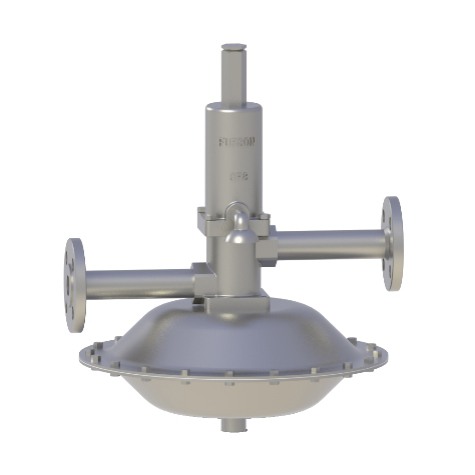

6612 Blanket Gas Regulator, high pressure

The 6612 Blanket Gas Regulator is an outstanding high-performance, high-pressure device meticulously engineered to precisely manage and sustain the pressure of protective gas, most commonly nitrogen, at the top of containers. This regulator is designed to meet the demanding requirements of various industrial applications where maintaining a stable and controlled gas environment is of utmost importance.

The nitrogen supply pressure is between 10psi - 200psi

Size: NPS1/2, NPS3/4, NPS1

Set Pressure: 20mbar~140mbar；

Materials: CF8, CF3M(Others on request)

The set point is unaffected by supply pressure

Product Detail

Key Feature

Product Features

Benefits

Application Areas

product detail

● Nitrogen Supply Pressure: The nitrogen supply pressure for this regulator ranges between 10psi and 200psi. This wide range ensures a stable and adequate gas supply, allowing it to adapt to different operational scenarios and guaranteeing a continuous and reliable flow of nitrogen.

● Size Options: It is available in NPS1/2, NPS3/4, and NPS1. These size options provide great flexibility to meet diverse installation requirements, making it suitable for a wide variety of container sizes and piping configurations.

● Set Pressure: The set pressure of the 6612 Blanket Gas Regulator ranges from 20mbar to 140mbar. This broad range allows for precise pressure configuration based on specific operational needs, ensuring that the protective gas pressure is accurately adjusted to provide optimal protection for the contents of the container.

● Materials: Commonly fabricated from CF8 and CF3M, both known for their excellent corrosion resistance and mechanical properties. However, other materials can be provided upon request to accommodate different environmental and process conditions, ensuring the regulator's compatibility with a wide range of operating environments.

Key Feature

One of the key features of the 6612 Blanket Gas Regulator is that the set point remains independent of the supply pressure. This means that regardless of variations in the nitrogen input pressure, the regulator is able to guarantee consistent and reliable pressure regulation. This feature is crucial in maintaining a stable and safe gas environment within the container, preventing any fluctuations that could potentially compromise the integrity of the contents or the safety of the operation.

Product Features

● Precise Pressure Control: Enables The regulator is equipped with advanced control mechanisms that enable precise maintenance of the set pressure within the higher range. This ensures effective gas protection, especially in applications where even slight deviations in pressure could have significant consequences.

● Durable Construction: Constructed with high-quality materials, the 6612 Blanket Gas Regulator is built to withstand the rigors of high-pressure operations and harsh industrial environments. Its durable design ensures a long service life and reliable performance, reducing the need for frequent maintenance and replacements.

● Versatile Sizes Options: The availability of multiple size options allows for seamless integration into various container and piping systems. Whether it's a small-scale operation or a large industrial facility, this regulator can be easily installed and adapted to fit the specific requirements of the system.

Benefits

● Optimized Process Protection: By maintaining a consistent high-pressure gas barrier, the regulator provides reliable protection for the container contents. This helps to prevent contamination, oxidation, and other forms of degradation, ensuring the quality and integrity of the stored materials.

● Energy Efficiency: The precise pressure control offered by the 6612 Blanket Gas Regulator helps optimize nitrogen usage. By avoiding over-pressurization or unnecessary gas consumption, it reduces operational costs and contributes to a more sustainable operation.

● Stable Performance: The immunity to supply pressure fluctuations ensures consistent and dependable operation. This reduces the risk of unexpected shutdowns or malfunctions, improving the overall productivity and reliability of the industrial process.

Application Areas

The 6612 Blanket Gas Regulator is widely applicable in industries such as petroleum, chemical, and gas storage. In these sectors, where maintaining the integrity and safety of products stored in containers is critical, the high-pressure gas seal protection provided by this regulator is essential. It helps to safeguard valuable materials, prevent environmental emissions, and ensure the smooth and safe operation of industrial processes.
