Emergency Relief Valve
-
Emergency Relief Valve
The emergency pressure relief valve is a rapid pressure relief device,it is a safety emergency ventilation device installed on equipment and storage tanks. It is usually used in conjunction with a breathing valve installed on the top of the tank to maintain normal pressure inside the tank, which can avoid accidents caused by sudden overpressure or vacuum inside the tank and damage to the tank.
-
Working Principle
Atmospheric pressure floating roof storage tanks are the most common type of tank in petrochemical enterprises, including storage areas. Although they are called atmospheric pressure storage tanks, the pressure in their internal gas phase space also fluctuates frequently. The sources of pressure fluctuations usually include changes in the volume of the gas phase space caused by material loading and unloading, as well as changes in the gas phase temperature of the tank caused by the external environment.
-
General Selection Principles
Since there are fluctuations in gas phase pressure, it is necessary to adjust the gas phase pressure in a continuously variable speed manner. In the early stages of construction, storage tanks were generally equipped with discharge ports above the tank walls, which were completely connected to the atmosphere. Later, in order to reduce the emission of atmospheric VOCs, more storage tanks were installed with breathing valves, single breathing valves, and even sealed oil and gas recovery facilities. A typical characteristic of atmospheric pressure storage tanks brought about by this technological improvement is the continuous enhancement of pressure characteristics in the gas phase space inside the tank. Based on this, a series of pressure relief facilities have been used to solve this increasingly significant pressure characteristic. Among them, breathing valves are a type of conventional pressure relief facility, also known as non emergency pressure relief facilities. Another type is emergency pressure relief facilities.
Furson's emergency relief valve has excellent leakage rate control, which can achieve the smallest possible discharge without reaching the set opening pressure, and can be fully opened in a timely manner after overpressure(10%), protecting the safety of the storage tank.

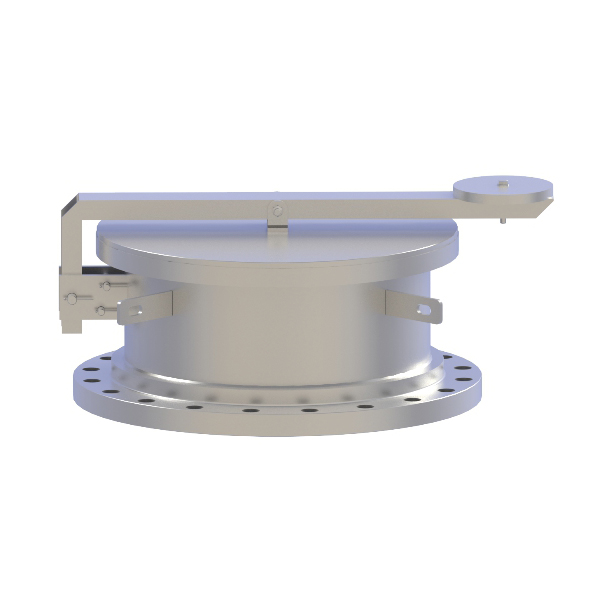

7710 Emergency Relife Vent, Weig...
The 7710 Emergency Relief Vent stands as a stalwart and highly efficient weight-loaded pressure relief device, meticulously engineered to offer unwavering protection to equipment and storage tanks in the most critical and demanding situations. This device is not just a mechanical component but a crucial line of defense, ensuring the safety and integrity of industrial operations.
Designed with a focus on reliability and effectiveness, the 7710 Emergency Relief Vent is the result of in-depth research and development, drawing upon years of industry expertise and the latest advancements in pressure relief technology. It is engineered to respond promptly and accurately to pressure fluctuations, providing a reliable safeguard against potential disasters.
The 7710 Emergency Relief Vent plays a vital role in maintaining the stability and security of industrial processes, where the protection of equipment and storage tanks is of paramount importance. It is a testament to the commitment to providing superior safety solutions that meet the rigorous demands of modern industrial environments.
Size: NPS16~24
Set Pressure: 6mbar~69mbar；
Materials: Carbon steel, SS 304, SS 316L (Others on request)
Standards: API2000, ISO28300

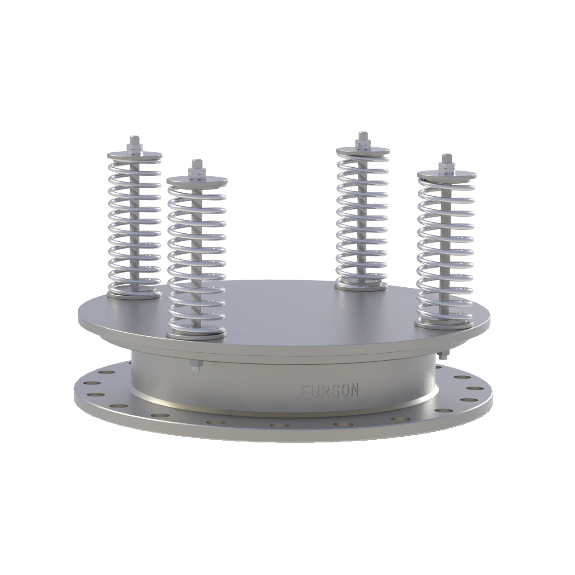

7712 Emergency Relife Vent, Spri...
The 7712 Emergency Relief Vent represents a pinnacle of engineering excellence, emerging as a high-performance spring-loaded device meticulously crafted to furnish prompt and unwavering pressure relief in the most critical of emergency scenarios. This device is not merely a component but a vital safeguard engineered specifically to protect equipment and storage tanks from the potentially catastrophic effects of excessive pressure.
Designed with an acute focus on delivering superior protection and reliability, the 7712 Emergency Relief Vent is the result of extensive research, development, and fine-tuning. It embodies the latest technological advancements and industry best practices, ensuring it stands at the forefront of pressure relief solutions.
This vent is engineered to anticipate and respond effectively to the most demanding and unexpected pressure surges, offering a proactive defense mechanism that instills confidence in the safety and integrity of industrial operations.
Size: NPS16~24
Set Pressure: 69mbar~999mbar；
Materials: Carbon steel, SS 304, SS 316L (Others on request)
Standards: API2000, ISO28300

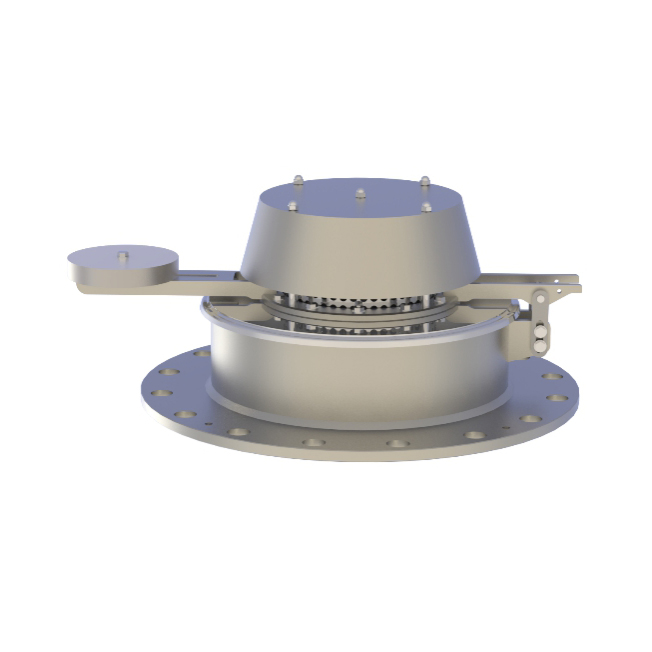

7720 Emergency Relief Vent with ...
The 7720 Emergency Relief Vent with Vacuum is a highly sophisticated and comprehensive safety device meticulously engineered to handle both pressure and vacuum conditions within equipment and storage tanks. It stands as a reliable safeguard, ensuring the protection of these crucial assets in a multitude of emergency situations.
This device is not merely a component but a critical solution that plays a vital role in maintaining the integrity and safety of industrial systems. It is designed to anticipate and respond effectively to the complex challenges posed by pressure and vacuum variations, offering a proactive defense against potential disasters.
The 7720 Emergency Relief Vent with Vacuum is the result of extensive research and development, incorporating the latest technological advancements and industry best practices. It represents a commitment to providing superior safety measures in an ever-evolving industrial landscape.
Size: NPS16~24
Set Pressure: 6mbar~999mbar；
Set Vacuum: 2mbar~17mbar
Materials: Carbon steel, SS 304, SS 316L (Others on request)
Standards: API2000, ISO28300
